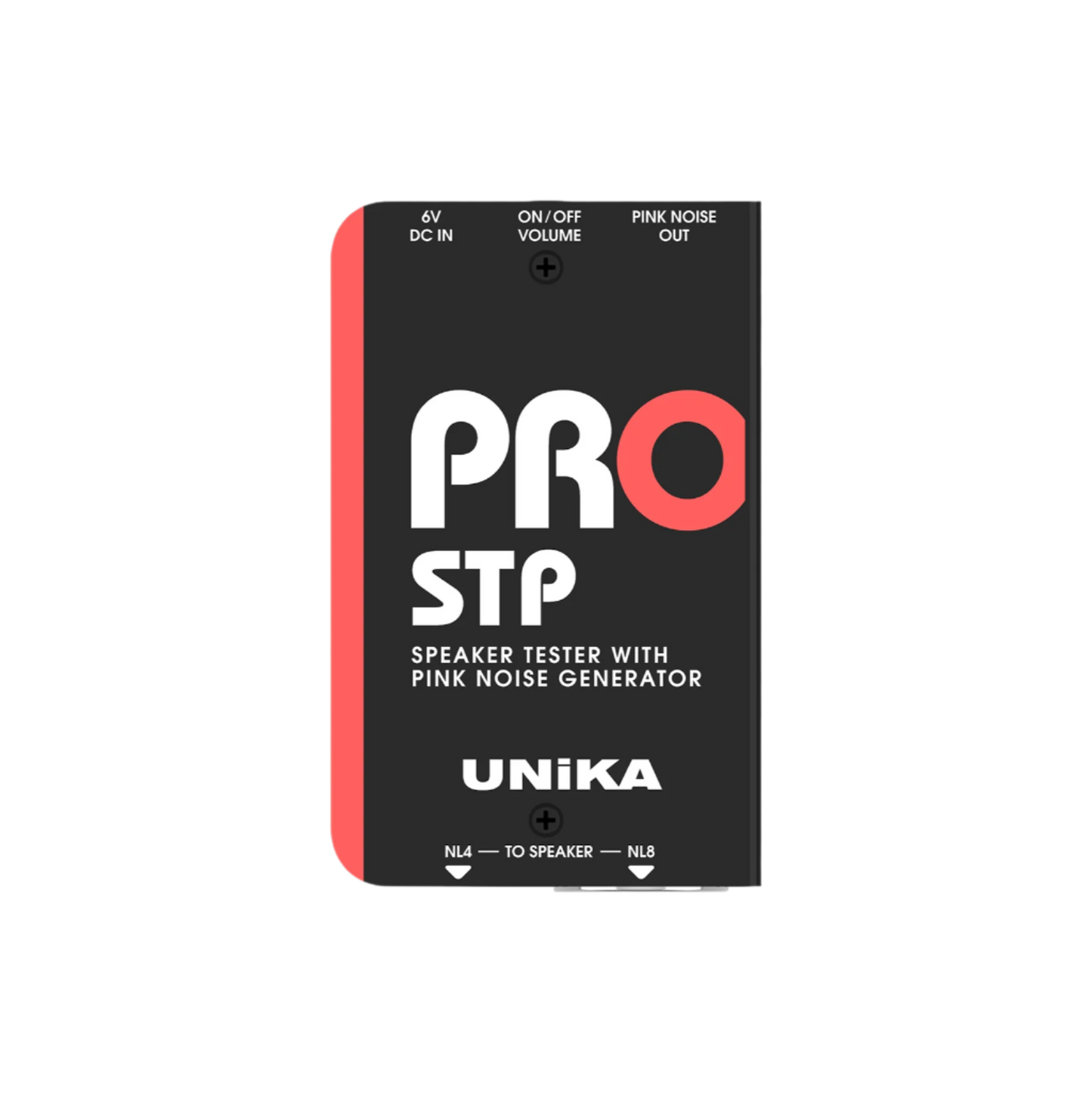

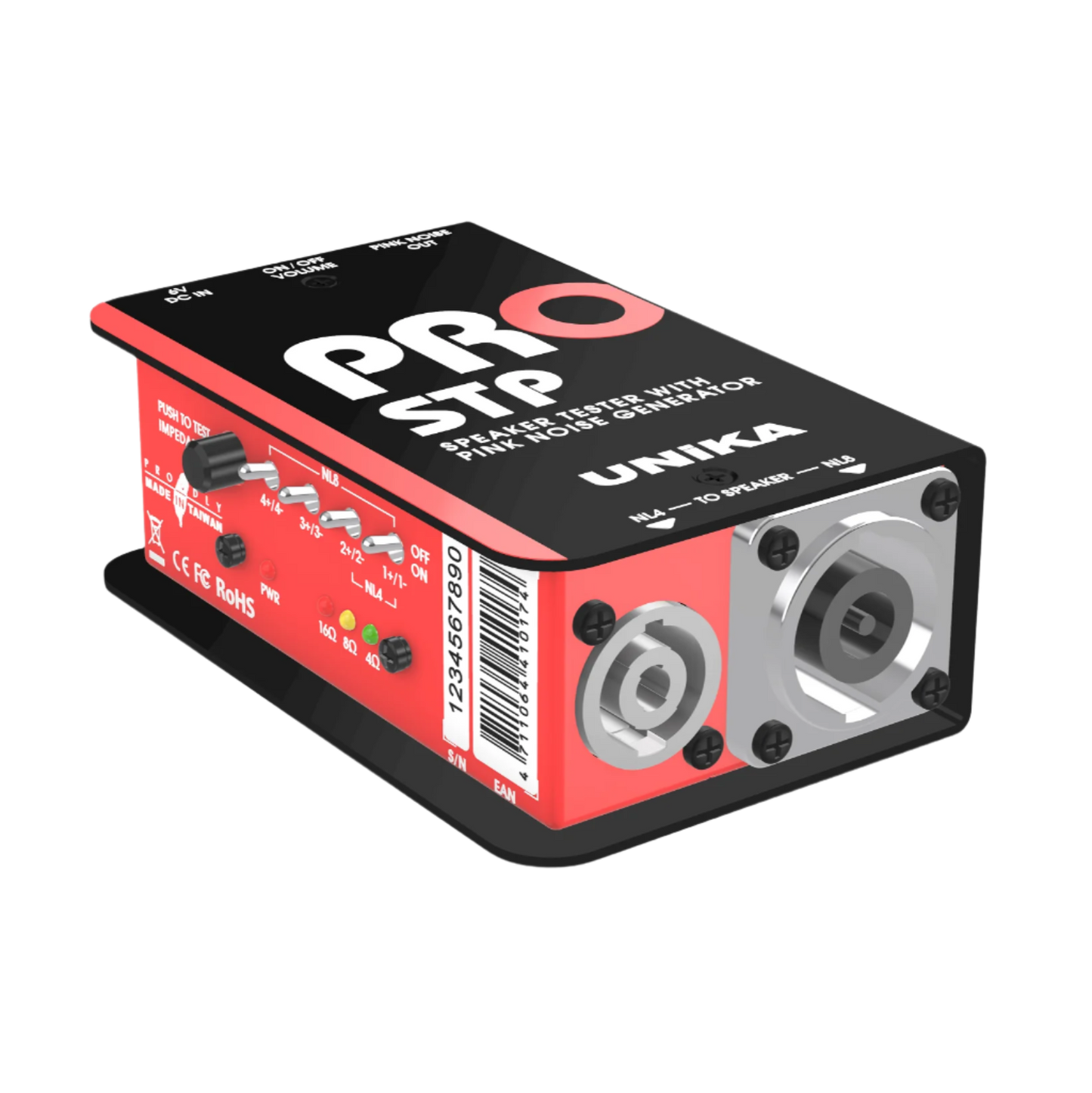

PRO STP is a speaker tester specially developed by UNiKA for audio engineers. In an environment without a power amplifier, engineers can use PRO STP to output pink noise and test the impedance of the speaker system, or output pink noise to the mixer for For general system testing.
OVERVIEW
．Generate and output pink noise from XLR to mixeror self-powered speaker cabinet.

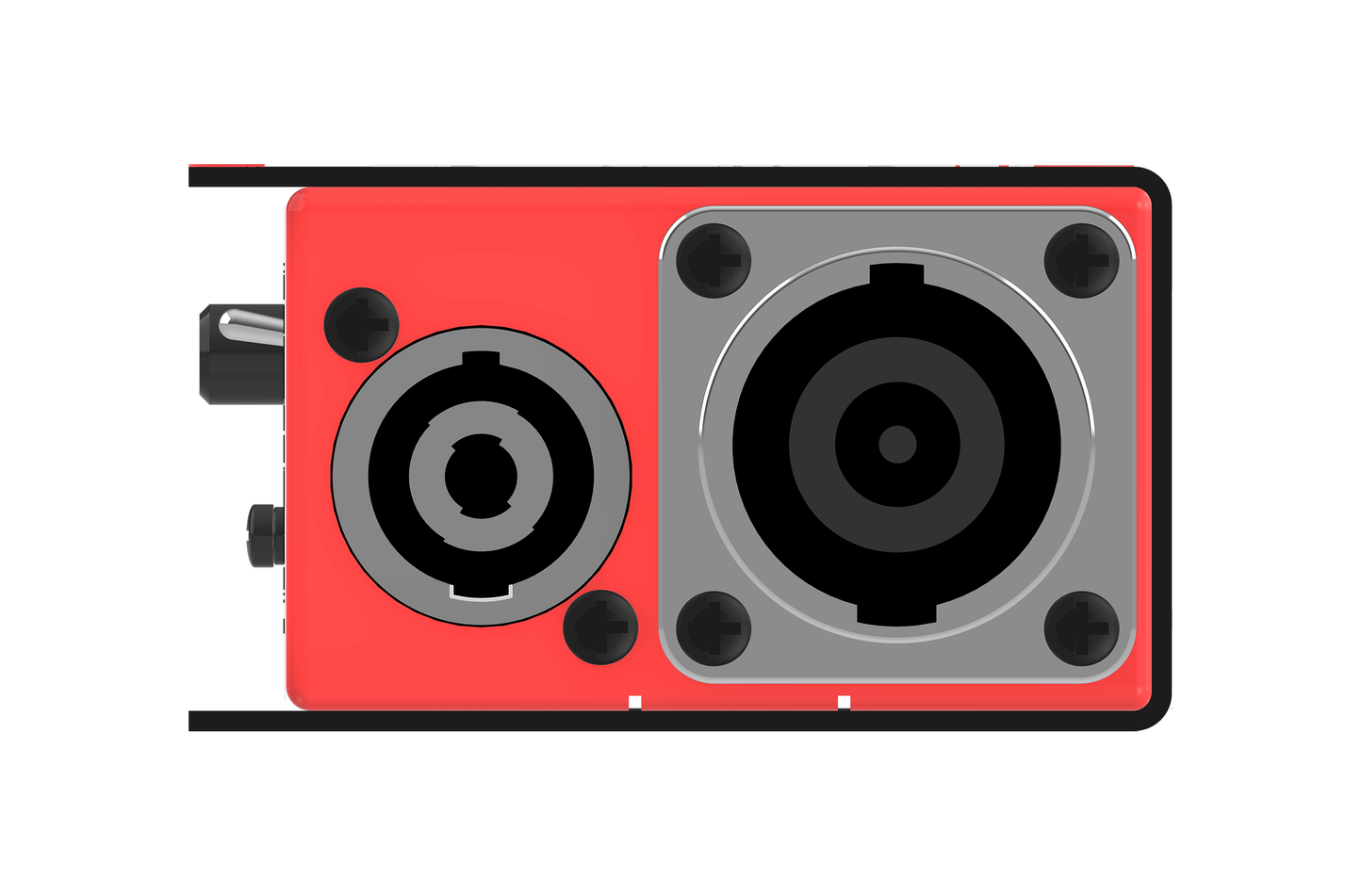

．Generate and output pink noise from NL4 and NL8 to speaker cabinet.
．Pink Noise is equipped with a dedicated on-off volume potentiometer.

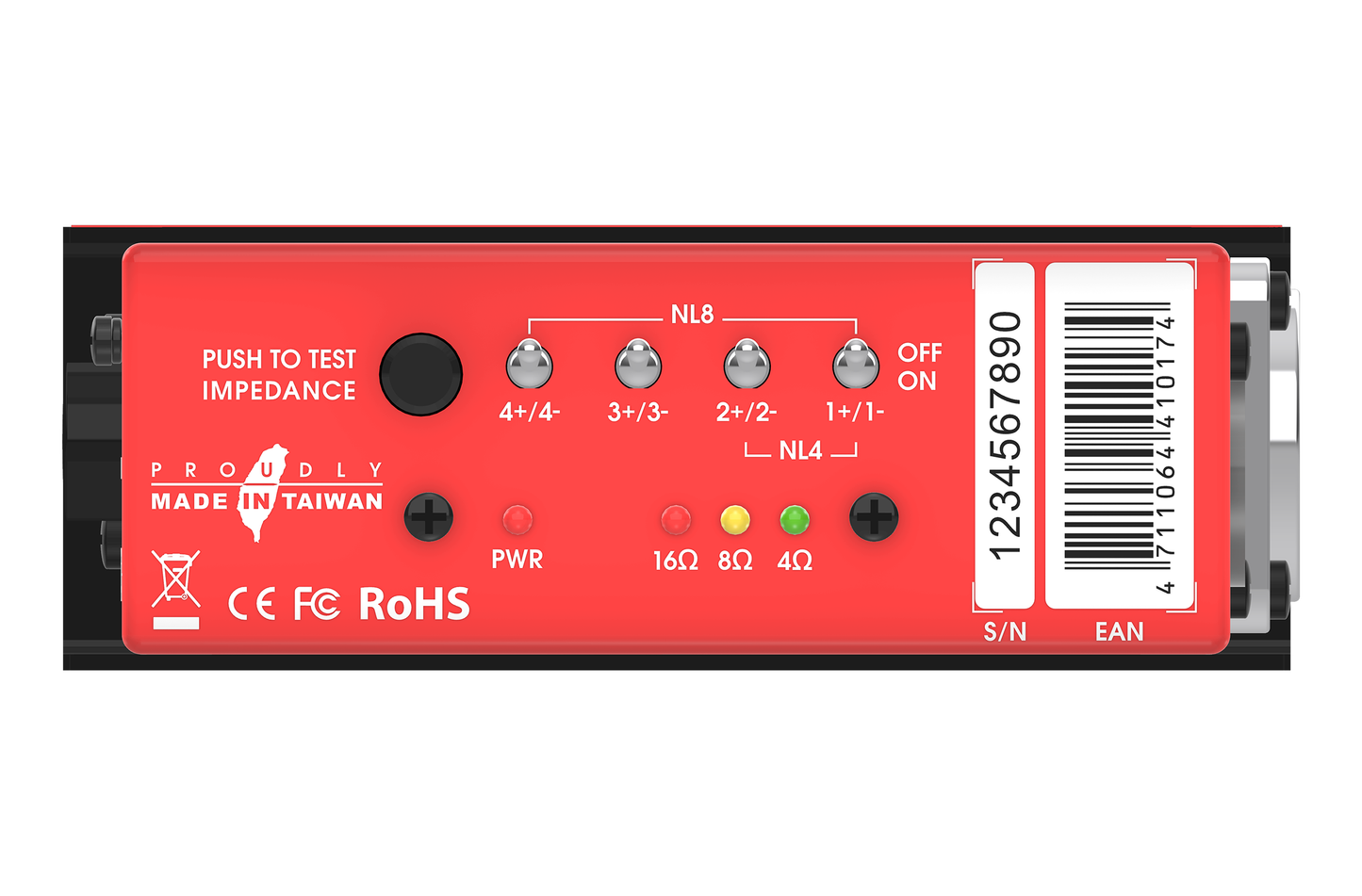

．The momentary button to create 5VDC is used to detect the impedance of the speaker.
．4 toggle switches are used to determine the 5VDC output to NL4 and NL8 wiring pins.
．The 4/8/16 ohms LED indicators are used to display the impedance result of the test.
