EMX-7150 Measurement microphone Kit (Matched Pair)

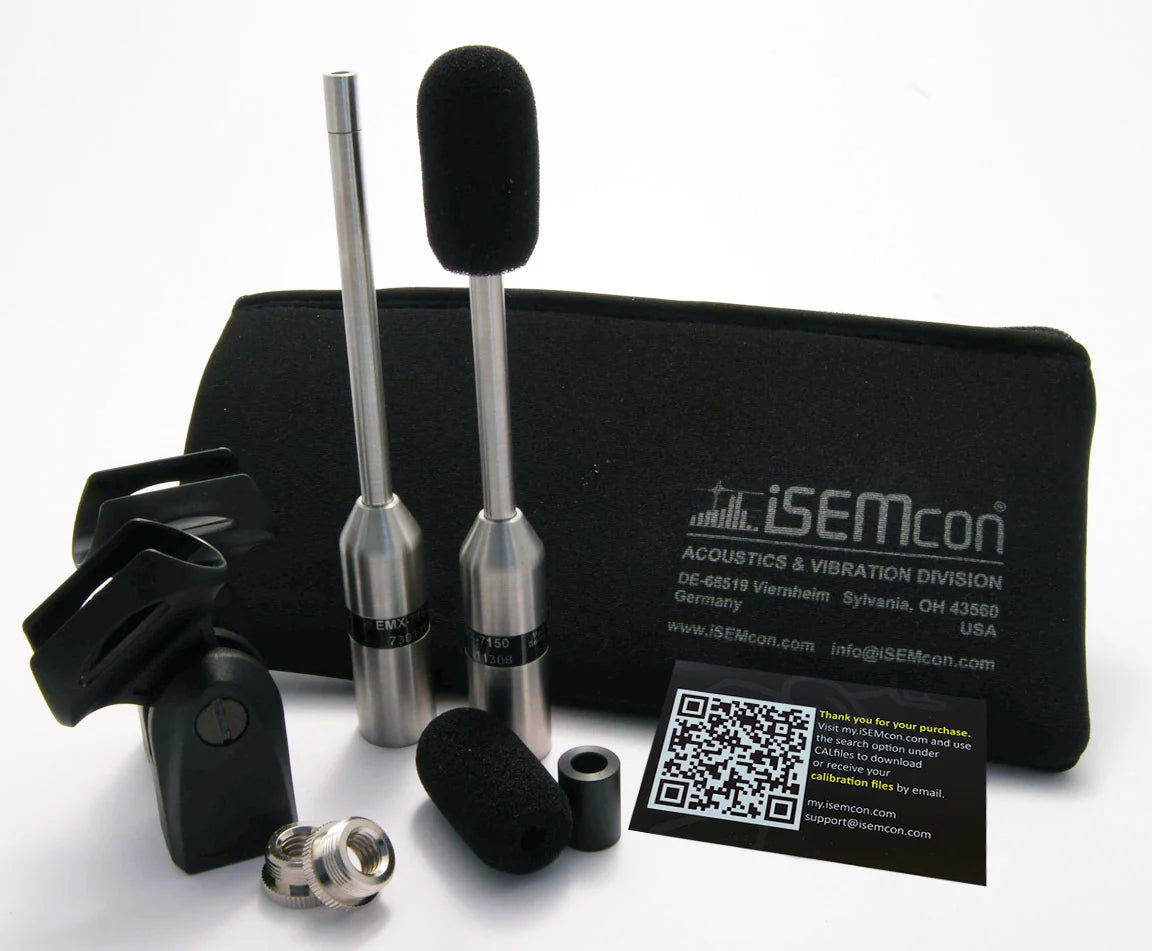

Includes : 2 * EMX-7150 microphone + clamp + adapter screw + WS-7XL Windscreen + calibration data download on my.iSEMcon.com + pouch

TYPICAL APPLICATIONS

• Sound-power and sound-field analysis
• Industrial Acoustics
• Room acoustics analysis
• Sound reinforcement
• Real time analyzers

The EMX-7150 is a 1⁄4” microphone made from stainless steel and using state of the art water tight Neutrik*3 connectors has a very accurate frequency response combined with the capability to measure high sound pressure levels up to 145dBspl. It is low impedance measurement microphone that can be operated from 12…52 V Phantom Power which is available on most professional microphone preamplifiers and professional computer interfaces. With its mechanically robust design it is well suited for harsh environment use such as open air sound reinforcement measurements. Its class 1 frequency response (NOTE: NOT A CLASS 1 MICROPHONE) makes it predestined for Room acoustics analysis including recording studios and home theaters. It can normally be used without the included freefield calibration data file for compensation. In this case take the individual calibration data as proof of its superb performance.

Our super protection windshield SWS -7 is recommended for open air use when limited amounts of spraying water as well as trickling water impact the microphone.

FEATURES

• Frequency range 10Hz-20kHz
• Sensitivity 6mV/Pa typ.
• Dynamic range ~30 >140dBspl
• 3% distortion limits 145dBspl typ.
• Calibration chart and calibration data files included on USB Stick.
• IEC 61672 class 1 frequency response
• Dimensions: acoustic port dia. 1/4″ (7mm); Microphone body 0.75″ (19mm); Overall length 6″ (152mm)
• Weight 0.3oz (75 grams)
